SAV D1024

Datalink Modems

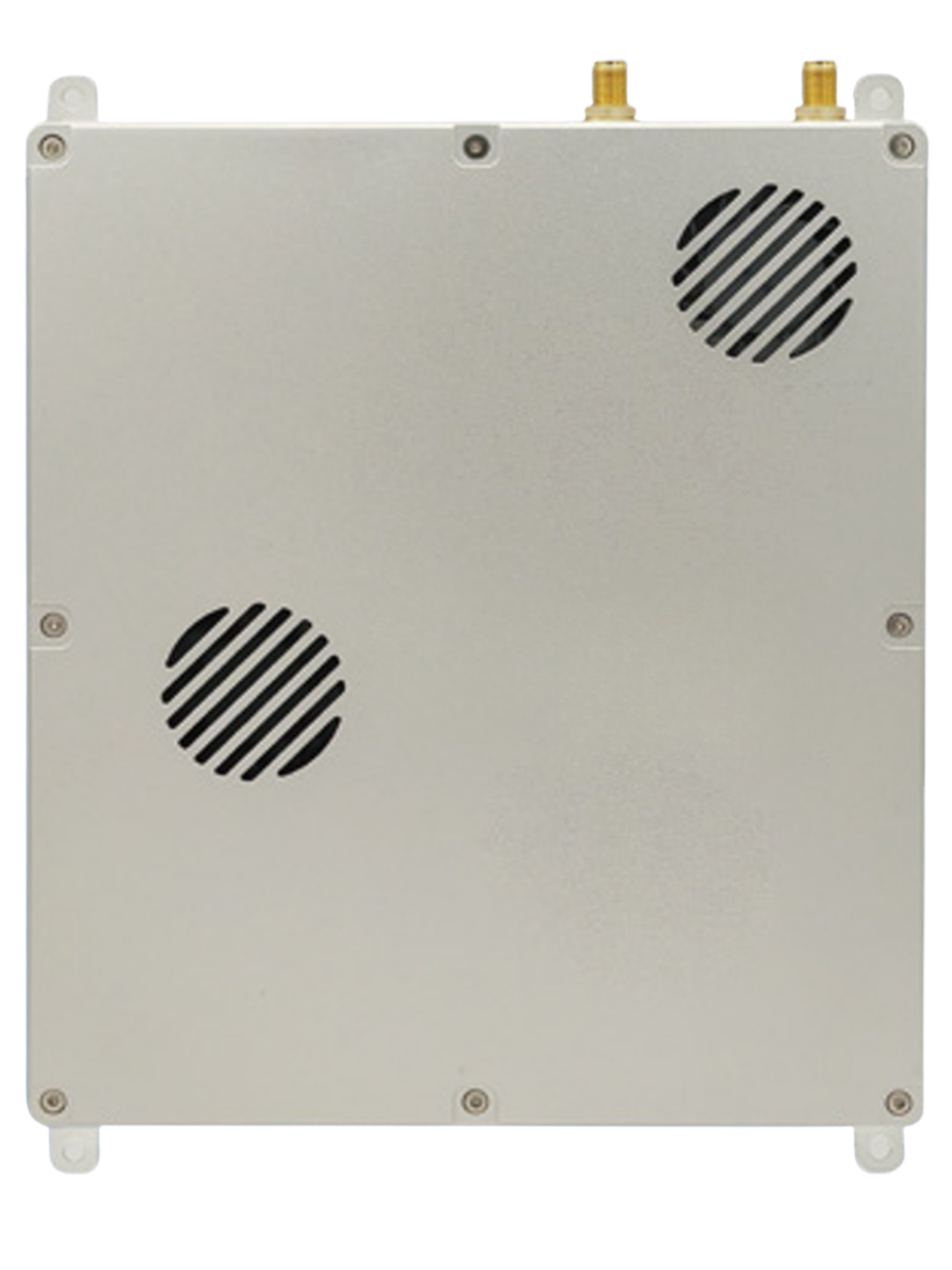

SAV D1024

150 KM range datalink modem in the 2.4 GHz band

Key Features

  • Transmit diversity and dynamic antenna switching
  • Adaptive modulation and coding scheme
  • Low-level retransmission and adaptive frequency hopping
  • AES 256 encryption on FPGA
Request a Quote Download Product Catalog ↓

Technical Specifications

01Communication Range150 KM (LOS)
02Frequency2.4 GHz
03Bandwidth10 MHz
04Transmit Power40 dBm
05ModulationOFDM
06Data Rate2-10 Mbps (Downlink), 600 Kbps (Uplink)
07EncryptionAES256
08InterfacesEthernet x3, Serial x2, S.BUS x2, PPM x1, Power x1
09Weight668 g
10Operating VoltageDC 18-26V
11Dimensions176 x 139.3 x 27.8 mm
12Operating Temperature-40°C to 60°C
